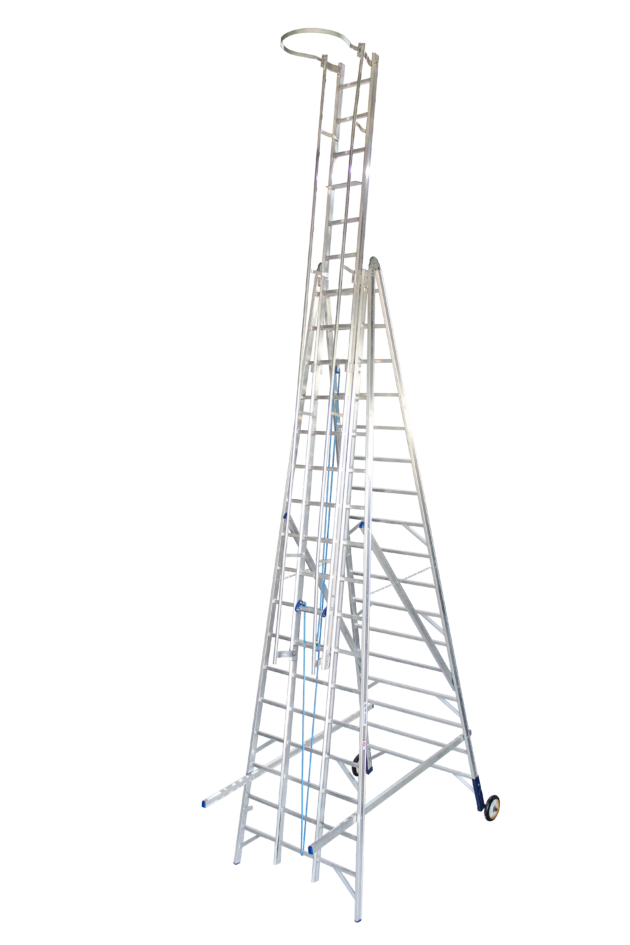

Heavy Duty Industrial Combination 3 Section Rung Ladder
- Can be used as a standing ladder or standing ladder with an extending ladder at the top
- This model is specially designed for electric operation handing service and the industrial work for high altitude
- The top section is extended by means of a rope and fixed on the desired height using automatic safety steel hooks
- The width of the extending section ladder is 36 cm
- Strong, durable safe design
- Safety hand rail along the extending top section with a round collar at the top
- Comfortable top step
- Durable webbing as opening restraint chain and aluminum bars fixed with screws to the sides of the wheels for smooth sliding on walls while extending the ladder
- Supplied with two wheels for easy manouver
- Supplied with two handles for moving the ladder
- Non skid rubber feet
Technical Details
- Beam Dimensions: 61×29 mm (72-9) and 63×31 mm (72-11 to 72-12.5)
- Square Rung Profile: 28×28 mm
- Maximum Load Capacity: 175 kg
- Equipment: Aluminum special Profile
Measurements
Type Number | ![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
---|---|---|---|---|---|---|---|---|
72-9 | 5.00 | 7.80 | 9.00 | 125.00 | 1.90 | 36.00 | 17 * 3 | 87.00 |
72-11 | 6.00 | 9.80 | 11.00 | 140.00 | 2.35 | 36.00 | 21 * 3 | 112.00 |
72-12.5 | 7.00 | 11.30 | 12.50 | 155.00 | 2.70 | 36.00 | 24 * 3 | 150.00 |
