Type 240 – Cross Over Ladders

Cross Over Ladders

• Easily walk over conveyors, machines, and pipes.
• Bridges have 125 mm. wide steps and 90 cm. high handrails. Platforms have a  85 mm. high toe board on each side. Legs each have one 5/8″ dia. hole for floor mounting (fasteners not included).
• Standard Crossover Bridges—have a 50° climbing angle and 7″ deep steps.
• Space-Saver Crossover Bridges—have a steeper stairway than standard crossover bridges, so they don’t extend as far. Climbing angle is 70°

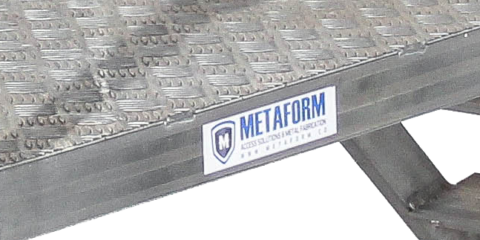

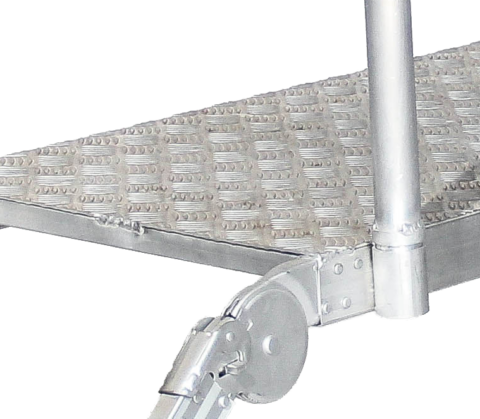

• Serrated steps and platform offer excellent slip resistance and an open-grid design that allows dirt and liquids to fall through. Diamond-plate steps and platform also provide slip resistance, but do not allow anything to fall through

* Note: The number of steps listed below is the number of steps on each side including platform.

Technical Details

• Beam Dimensions: 60×25 or 85×25 mm
• Standard Step width: 80 mm. or 125 mm
• Working heights from 0.5 m. up to 2 m
• Bridge Width: 70 cm
• Platform Capacity: 150 kg
